SM Series

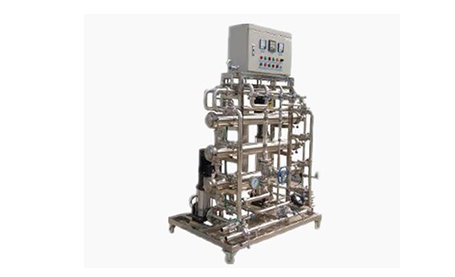

Multifunctional Membrane Separation Device Multi SM-4040
Basic information
¡ñ Model£ºMulti SM-4040
¡ñ Process capacity£º50¡«100L/H
¡ñ Membrane element£ºGE imported original roll type membrane, single membrane area 5.6¡«7.5©O
¡ñ Powder Unit£ºImported GRUNDFOS pump, Pressure 0¡«25Bar adjustable
¡ñ Material circulation tank£ºeffective volumeV=80L
Description
Specification
Optional items
System Survey
¡ñ Middle type Multi SM-4040 is mainly used for separation and
purification of ultrafiltration(UF), nanofiltration (NF), reverse osmosis
(RO), which can be filtered, decolorized, desalted, purified,
concentrated.
¡ñ According to the size of the molecular weight of the separated
material, the selection of the membrane was carried out, and the
material of 0.03 mu m to 100dalton could be separated.
¡ñ Middle type Multi SM-4040 is mainly used for separation andpurification of ultrafiltration(UF), nanofiltration (NF), reverse osmosis
(RO), which can be filtered, decolorized, desalted, purified,
concentrated.
¡ñ According to the size of the molecular weight of the separated
material, the selection of the membrane was carried out, and the
material of 0.03 mu m to 100dalton could be separated.
¡ñ The equipment has the advantages of easy cleaning and maintenance
and great freedom of use, etc.

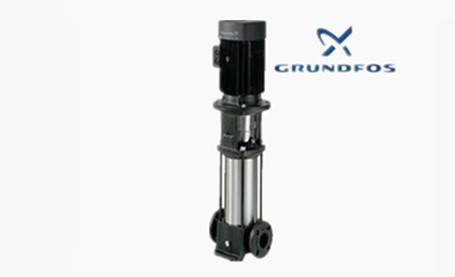

Power Unit
¡ñ Imported GRUNDFOS pump
¡ñ Booster pump + circulating pump double pump control to meet the
requirements of experimental diversity.
¡ñ Variable frequency control, 20 ~ 50Hz adjustable, wide range use
¡ñ Pressure 0 ~ 25Bar adjustable

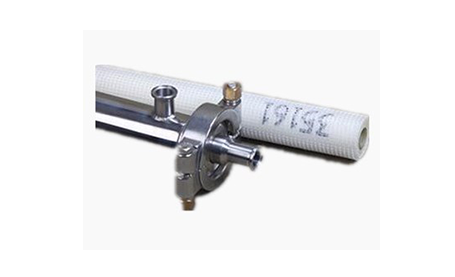

Membrane Shell
¡ñ 3 pieces in parallel
¡ñ Connection mode: high pressure clamp quick disconnection, withstand
voltage 20Mpa
¡ñ Material £ºAISI 304
¡ñ Surface treatment: external surface brushed, inner surface polishing,
food hygiene grade.

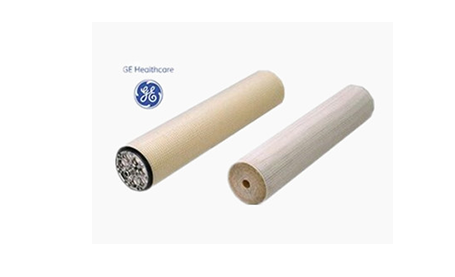

Roll Type Membrane Element
¡ñ GE imported original roll type membrane, 3pieces
¡ñ Membrane Model£º4040 Industrial separation film, anti-pollution film
¡ñRange of application£ºMF, UF, NF, RO
¡ñ 4040 film brand has the famous brand of GE and Dow chemical, which
is rich in horizontal contrast test, and the general film shell adapts to
various brand films.
Control Cabinet
¡ñ Instrument control cabinet on site
¡ñ Control Mode: PID Instrument control, automatic adjustment
¡ñ Sensor: temperature electrode, pressure sensor, variable frequency
motor
¡ñFlowmeter: field flow meter, manual adjustment.
¡ñ Instrument: four-in-one display + control instrument, variable
frequency regulator.
¡ñ Instrument: four-in-one display + control instrument, variable
frequency regulator.
Material Standard
¡ñ Contact material part: Material AISI 304, food grade hose
¡ñ Non-contact material part: Material AISI 304, carbon steel + spray
paint

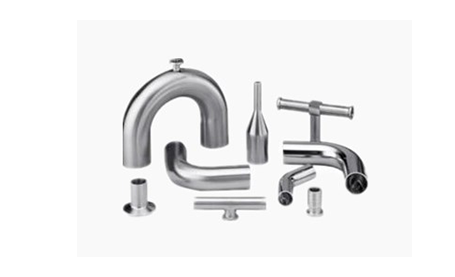

¡ñ Pipeline: Sanitary seamless stainless steel tube
¡ñ Valves: Food grade sanitary ball valves, diaphragm Valves
Materials, heat exchangers, flow meters, valves, pumps, etc. can be customized according to the user's environment.
